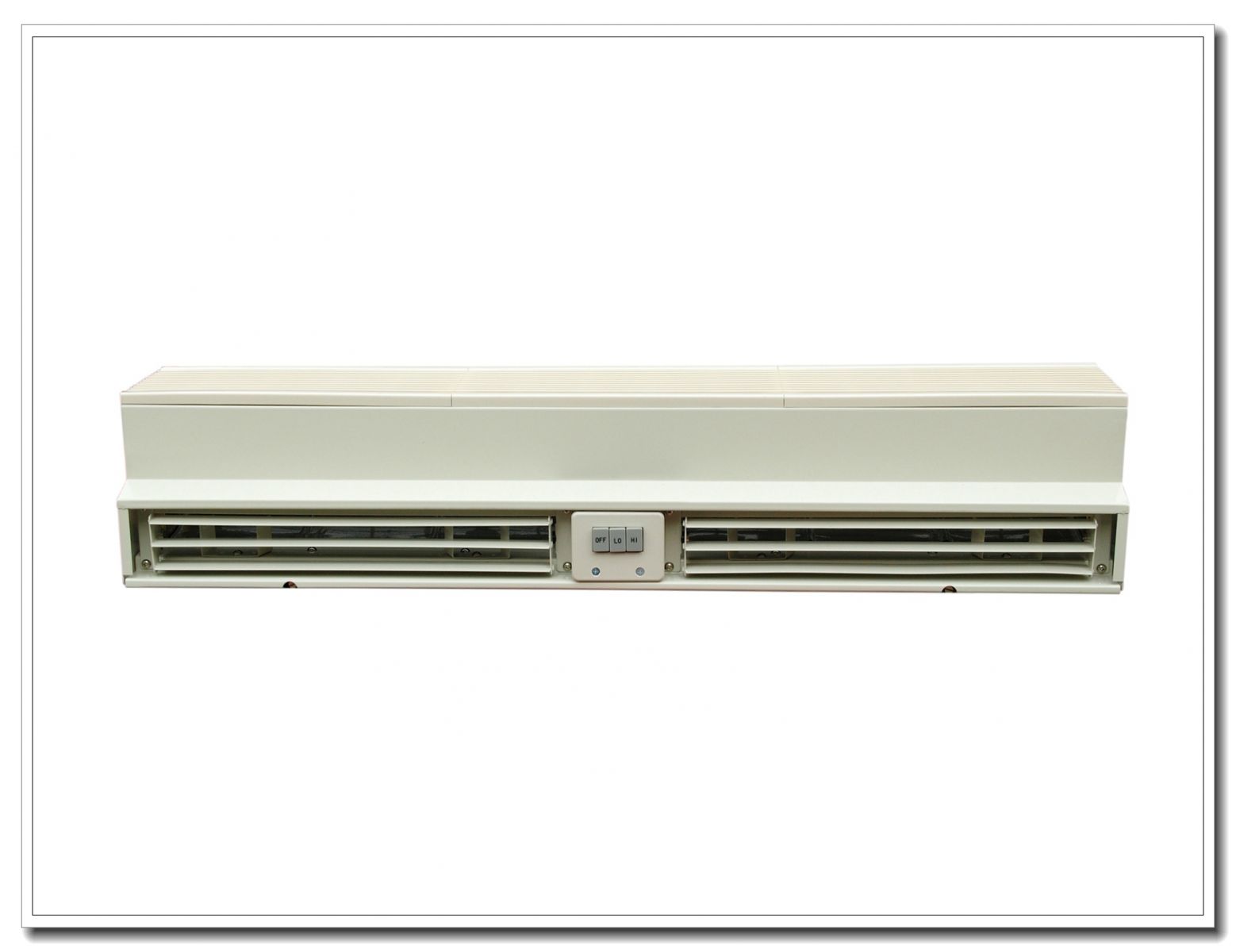

Air Curtain 0909
Air Curtain 0909
Traditional square shape air curtain with advantage of high air speed, big air volume and low noise level.
Model: FM-0.9-09
Type: Cross-flow

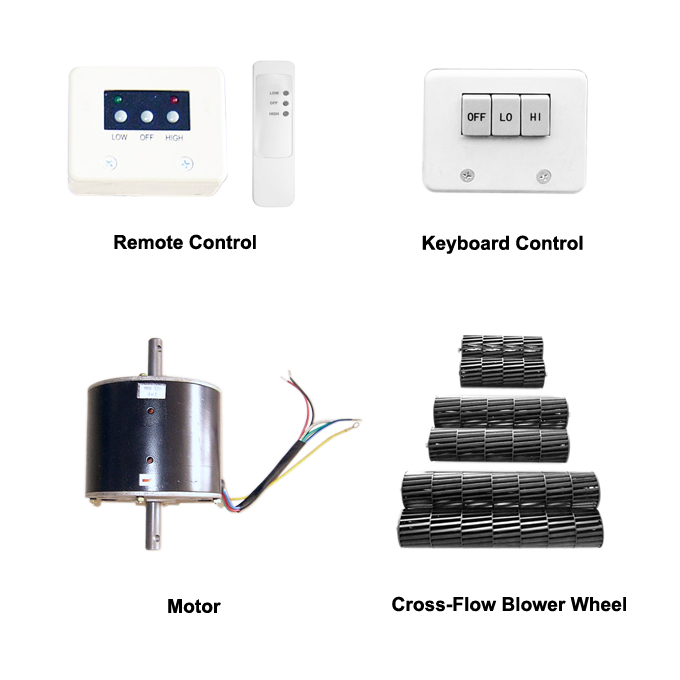

Control: keyboard or remote control
Length: 900mm
Control: keyboard or remote control
Length: 900mm
Blower Diameter: 90mm
Rated Voltage: 220-240v
Rated Frequency: 50/60Hz
Input Power: 65w
Air Speed: >8m/s (1600fpm)
Air Volume: >930m3/h (548cfm)
Sound Level: <53dB
Height Validity: <2m
Gross Weight: 12.0kgs
Net Weight: 10.5kgs
Case: powder-coated steel
Dimensions: 900*176*175mm
Packing Size: 975*220*230mm
Container Loading: 615pcs/20ft, 1265pcs/40ft
.jpg)
Related Models:
| Type | Model | Length(mm) | Blower Dia(mm) | Height Validity(m) | Air Speed(m/s) |
| Square shape Air Curtain | FM-0.9-06 | 600 | 90 | 2 | 8 |
| Square shape Air Curtain | FM-0.9-09 | 900 | 90 | 2 | 8 |
| Square shape Air Curtain | FM-0.9-12 | 1200 | 90 | 2 | 8 |
| Square shape Air Curtain | FM-1.25-06 | 600 | 125 | 2.6 | 13 |
| Square shape Air Curtain | FM-1.25-09 | 900 | 125 | 2.6 | 13 |
| Square shape Air Curtain | FM-1.25-12 | 1200 | 125 | 2.6 | 13 |
| Square shape Air Curtain | FM-1.25-15 | 1500 | 125 | 2.6 | 13 |
| Square shape Air Curtain | FM-1.5-06 | 600 | 150 | 5 | 15 |
| Square shape Air Curtain | FM-1.5-09 | 900 | 150 | 5 | 15 |
| Square shape Air Curtain | FM-1.5-12 | 1200 | 150 | 5 | 15 |
| Square shape Air Curtain | FM-1.5-15 | 1500 | 150 | 5 | 15 |
| Square shape Air Curtain | FM-1.5-09 plus | 900 | 150 | 5 | 18.5 |
| Square shape Air Curtain | FM-1.5-12 plus | 1200 | 150 | 5 | 18.5 |
| Square shape Air Curtain | FM-1.5-15 plus | 1500 | 150 | 5 | 18.5 |
