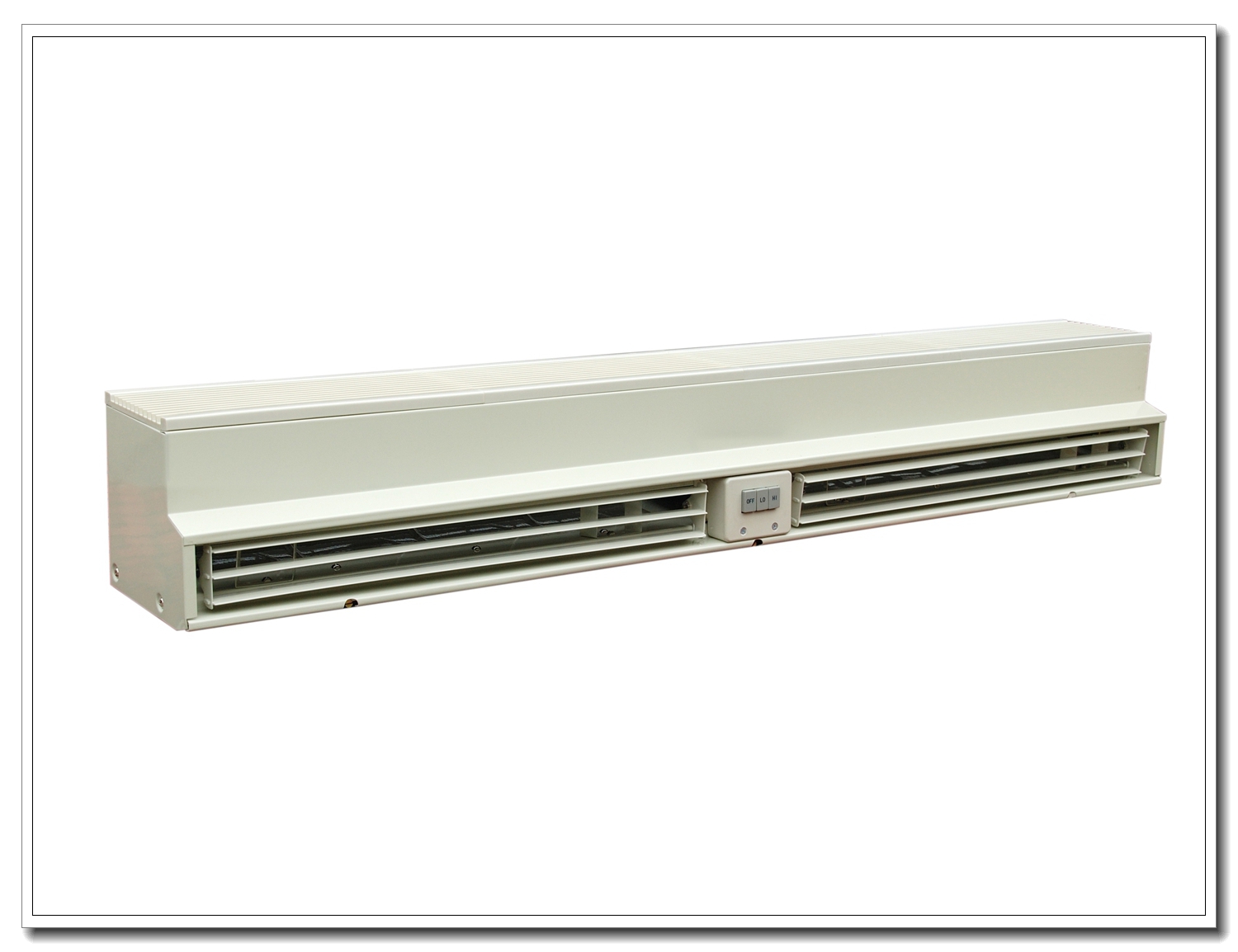

Air Curtain 0912
Air Curtain 0912
Traditional square shape air curtain with advantage of high air speed, big air volume and low noise level.
Model: FM-0.9-12
Type: Cross-flow
Control: keyboard or remote control
Length: 1200mm
Control: keyboard or remote control
Length: 1200mm
Blower Diameter: 90mm
Rated Voltage: 220-240v
Rated Frequency: 50/60Hz
Input Power: 95w
Air Speed: >8m/s (1600fpm)
Air Volume: >1310m3/h (771cfm)
Sound Level: <54dB
Height Validity: <2m
Gross Weight: 15.0kgs
Net Weight: 13.5kgs
Case: powder-coated steel
Dimensions: 1200*176*175mm
Packing Size: 1275*220*230mm
Container Loading: 425pcs/20ft, 915pcs/40ft
Container Loading: 425pcs/20ft, 915pcs/40ft
.jpg)
Related Models:
| Type | Model | Length(mm) | Blower Dia(mm) | Height Validity(m) | Air Speed(m/s) |
| Square shape Air Curtain | FM-0.9-06 | 600 | 90 | 2 | 8 |
| Square shape Air Curtain | FM-0.9-09 | 900 | 90 | 2 | 8 |
| Square shape Air Curtain | FM-0.9-12 | 1200 | 90 | 2 | 8 |
| Square shape Air Curtain | FM-1.25-06 | 600 | 125 | 2.6 | 13 |
| Square shape Air Curtain | FM-1.25-09 | 900 | 125 | 2.6 | 13 |
| Square shape Air Curtain | FM-1.25-12 | 1200 | 125 | 2.6 | 13 |
| Square shape Air Curtain | FM-1.25-15 | 1500 | 125 | 2.6 | 13 |
| Square shape Air Curtain | FM-1.5-06 | 600 | 150 | 5 | 15 |
| Square shape Air Curtain | FM-1.5-09 | 900 | 150 | 5 | 15 |
| Square shape Air Curtain | FM-1.5-12 | 1200 | 150 | 5 | 15 |
| Square shape Air Curtain | FM-1.5-15 | 1500 | 150 | 5 | 15 |
| Square shape Air Curtain | FM-1.5-09 plus | 900 | 150 | 5 | 18.5 |
| Square shape Air Curtain | FM-1.5-12 plus | 1200 | 150 | 5 | 18.5 |
| Square shape Air Curtain | FM-1.5-15 plus | 1500 | 150 | 5 | 18.5 |
