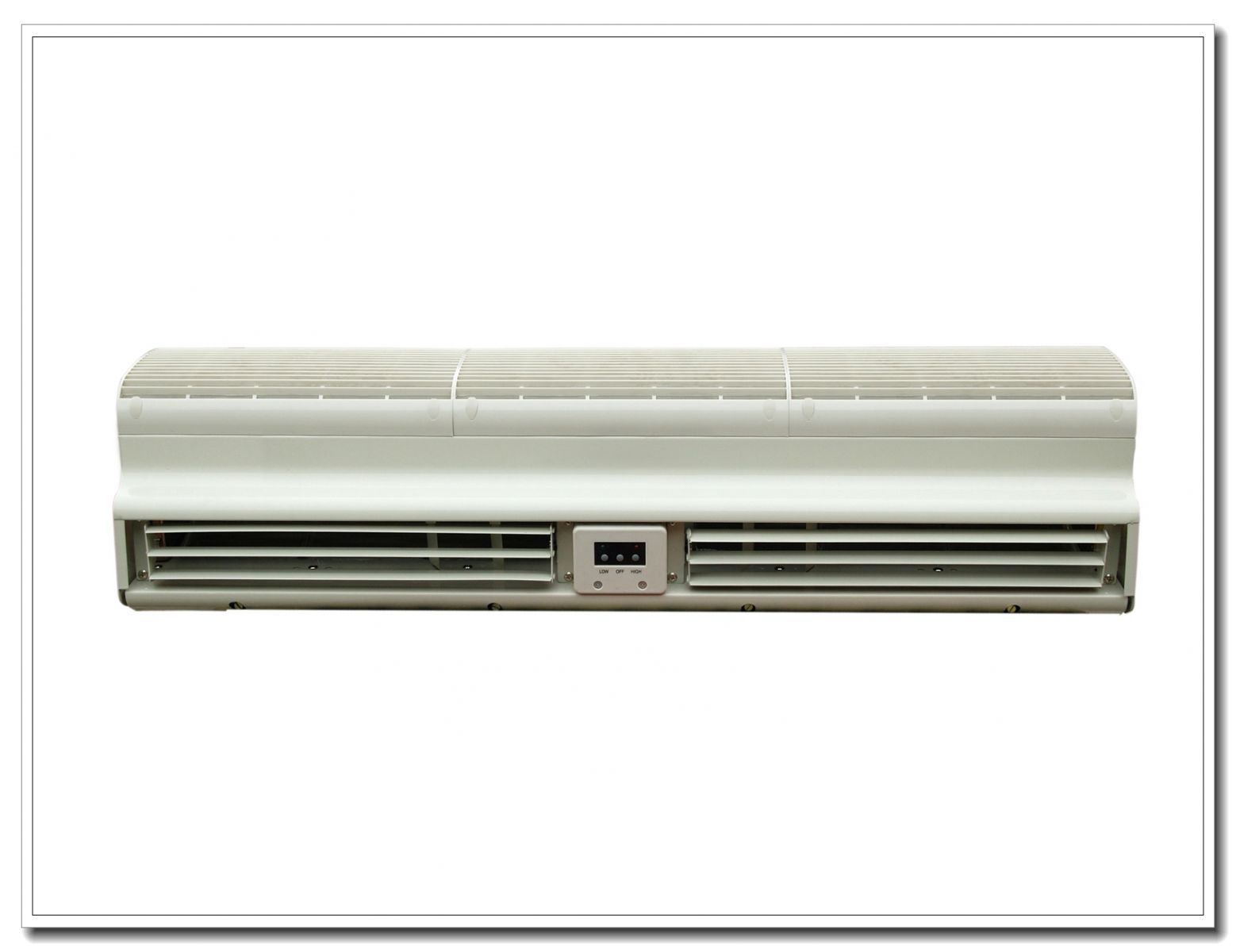

Air Curtain 12509B
Air Curtain 12509B .jpg)
Modern design air curtains in sleek shape, with advantage of high air speed, big air volume and low noise level.
Model: FM-1.25-09B
Type: Cross-flow
Control: Keyboard or Remote control
Length: 900mm (3ft)
Control: Keyboard or Remote control
Length: 900mm (3ft)
Blower Diameter: 125mm
Rated Voltage: 220-240v
Rated Frequency: 50/60Hz
Input Power: 115w
Air Speed: >13m/s (2600fpm)
Air Volume: >1800m³/h (1060cfm)
Sound Level: <57dB
Height Validity: <2.6m
Gross Weight: 14.5kgs
Net Weight: 13.0kgs
Case: powder-coated steel
Dimensions: 900*205*215mm
Packing Size: 975*256*260mm
Container Loading: 465pcs/20ft, 950pcs/40ft
.jpg)
Related Models:
| Type | Model | Length(mm) | Blower Dia(mm) | Height Validity(m) | Air Speed(m/s) |
| Arc shape Air Curtain | FM-1.25-06B | 600 | 125 | 2.6 | 13 |
| Arc shape Air Curtain | FM-1.25-09B | 900 | 125 | 2.6 | 13 |
| Arc shape Air Curtain | FM-1.25-12B | 1200 | 125 | 2.6 | 13 |
| Arc shape Air Curtain | FM-1.25-15B | 1500 | 125 | 2.6 | 13 |
| Arc shape Air Curtain | FM-1.5-06B | 600 | 150 | 5 | 15 |
| Arc shape Air Curtain | FM-1.5-09B | 900 | 150 | 5 | 15 |
| Arc shape Air Curtain | FM-1.5-12B | 1200 | 150 | 5 | 15 |
| Arc shape Air Curtain | FM-1.5-15B | 1500 | 150 | 5 | 15 |
