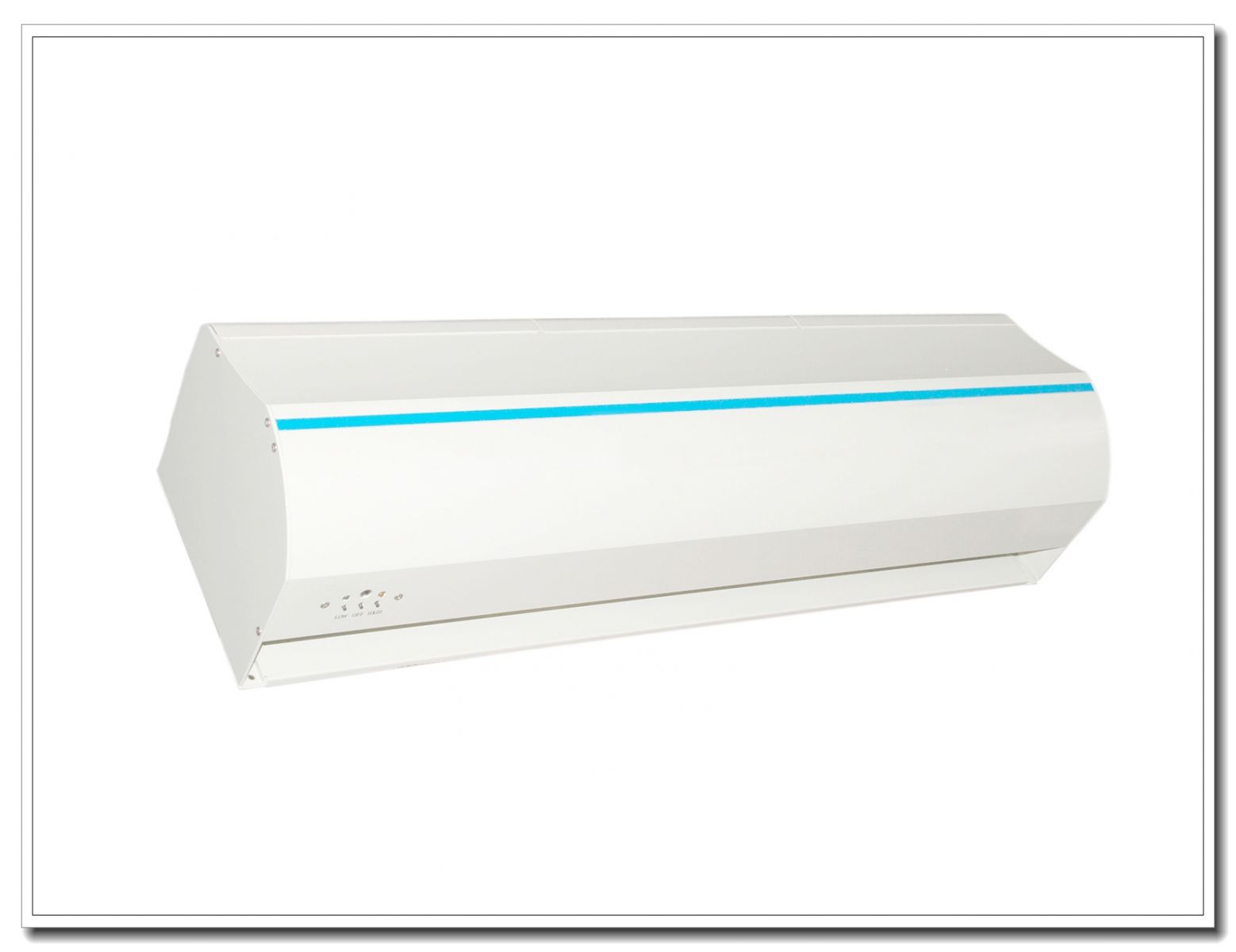

Air Curtain 12509L
Air Curtain 12509L .jpg)
Superhigh speed centrifugal type air curtain door with galvanized steel case, high air speed of 19m/s and low noise level.
Model: FM-1.25-09L
Type: Centrifugal
Control: Remote control
Length: 900mm (3ft)
Control: Remote control
Length: 900mm (3ft)
Blower Diameter: 125mm
Rated Voltage: 220-240v
Rated Frequency: 50/60Hz
Input Power: 250w
Air Speed: >19m/s (3800fpm)
Air Volume: >2600m3/h (1531cfm)
Sound Level: <52dB
Height Validity: <3.5m
GW: 16.0kgs
NW.: 14.5kgs
Case: galvanized steel
Dimensions: 900*235*225mm
Packing Size: 965*282*280mm
Container Loading: 380pcs/20ft, 780pcs/40ft
Container Loading: 380pcs/20ft, 780pcs/40ft
Related Models:
| Type | Model | Length(mm) | Blower Dia(mm) | Height Validity(m) | Air Speed(m/s) |
| Centrifugal Air Curtain | FM-1.25-09L | 900 | 125 | 3.5 | 19 |
| Centrifugal Air Curtain | FM-1.25-12L | 1200 | 125 | 3.5 | 19 |
| Centrifugal Air Curtain | FM-1.25-15L | 1500 | 125 | 3.5 | 19 |
