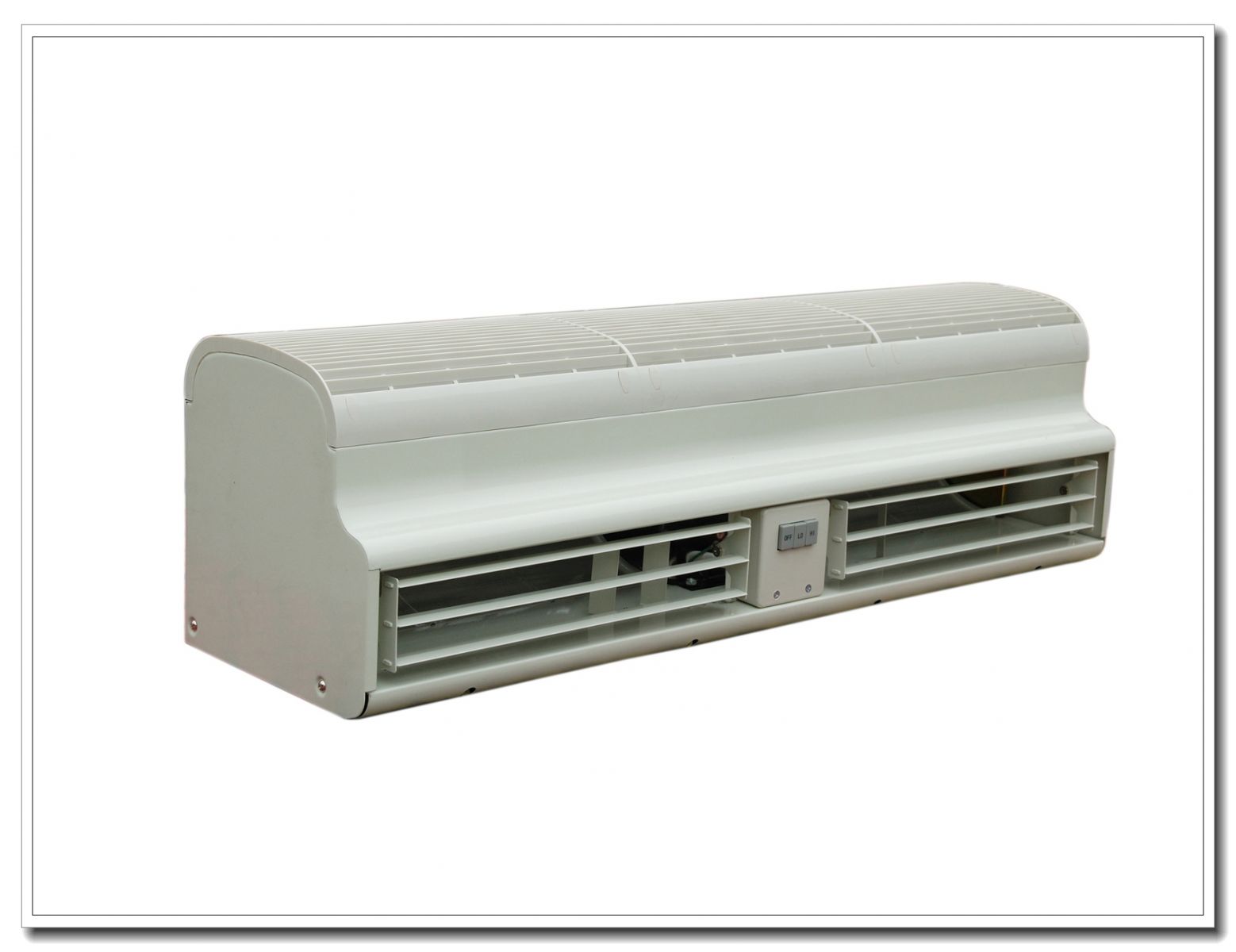

Air Curtain 1509B
Air Curtain 1509B
Modern design air curtains in sleek shape, with advantage of high air speed, big air volume and low noise level.
Model: FM-1.5-09B
Type: Cross-flow
Control: Keyboard or Remote control
Length: 900mm (3ft)
Control: Keyboard or Remote control
Length: 900mm (3ft)
Blower Diameter: 150mm
Rated Voltage: 220-240v
Rated Frequency: 50/60Hz
Input Power: 220w
Air Speed: >15m/s (3000fpm)
Air Volume: >2400m3/h (1413cfm)
Sound Level: <58dB
Height Validity: <5m
Gross Weight: 18.5kgs
Net Weight: 17kgs
Case: powder-coated steel
Dimensions: 900*266*265mm
Packing Size: 975*318*325mm
Container Loading: 290pcs/20ft, 595pcs/40ft
.jpg)
Related Models:
| Type | Model | Length(mm) | Blower Dia(mm) | Height Validity(m) | Air Speed(m/s) |
| Arc shape Air Curtain | FM-1.25-06B | 600 | 125 | 2.6 | 13 |
| Arc shape Air Curtain | FM-1.25-09B | 900 | 125 | 2.6 | 13 |
| Arc shape Air Curtain | FM-1.25-12B | 1200 | 125 | 2.6 | 13 |
| Arc shape Air Curtain | FM-1.25-15B | 1500 | 125 | 2.6 | 13 |
| Arc shape Air Curtain | FM-1.5-06B | 600 | 150 | 5 | 15 |
| Arc shape Air Curtain | FM-1.5-09B | 900 | 150 | 5 | 15 |
| Arc shape Air Curtain | FM-1.5-12B | 1200 | 150 | 5 | 15 |
| Arc shape Air Curtain | FM-1.5-15B | 1500 | 150 | 5 | 15 |
