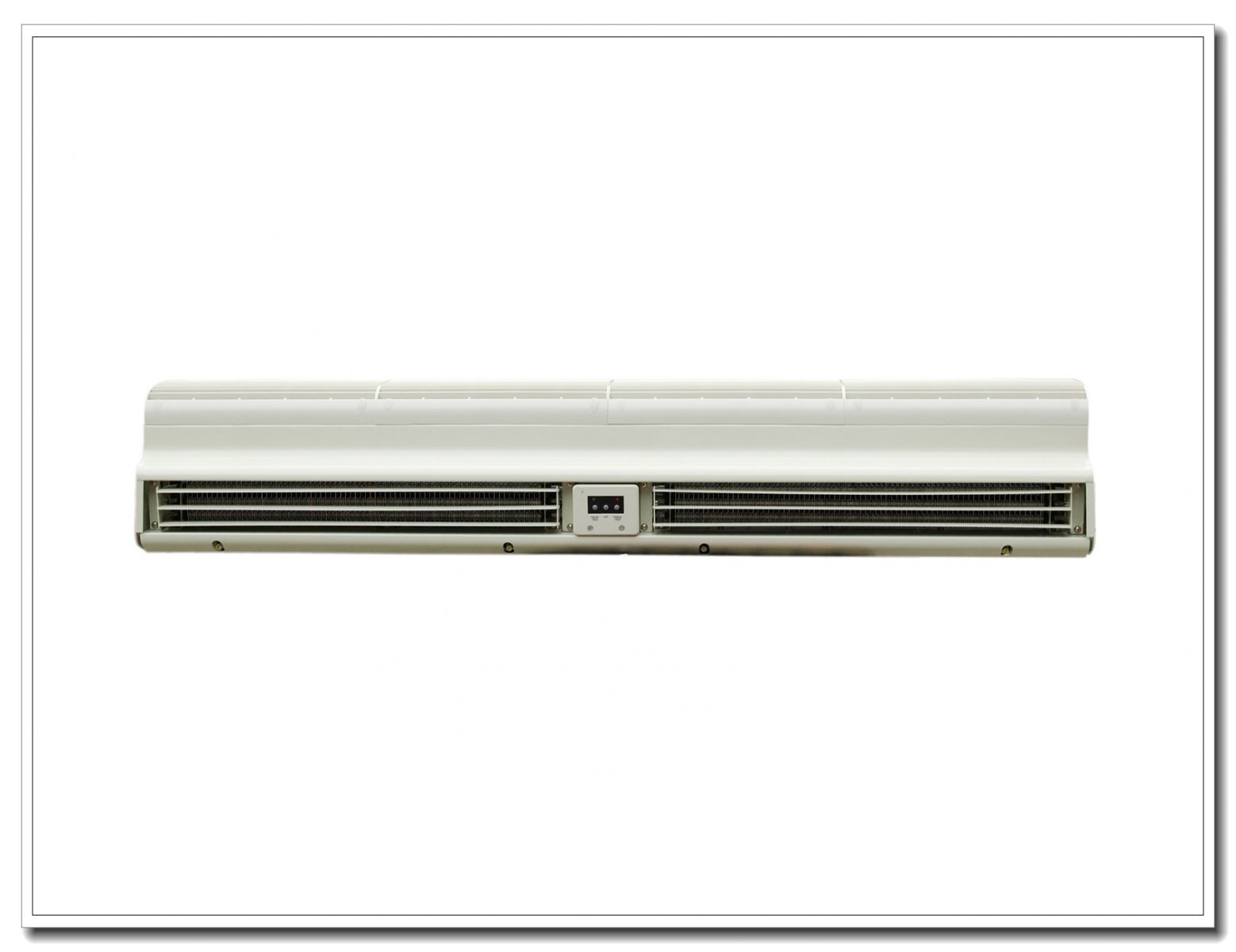

Air Curtain 12515BD
Air Curtain 12515BD
Electrical heated air door with PTC heater. Big air volume, high air speed and low noise level.
Model: FM-1.25-15BD
Type: Cross-flow
Control: Remote control
Length: 1500mm (5ft)
Control: Remote control
Length: 1500mm (5ft)
Blower Diameter: 125mm
Rated Voltage: 220-240v
Rated Frequency: 50Hz
Heater Power: 8000w
Air Speed: >8m/s (1600fpm)
Air Volume: >2290m3/h (1349cfm)
Sound Level: <59dB
Height Validity: <2.3m
Gross Weight: 26.0kgs
Net Weight: 23.5kgs
Case: powder-coated steel
Dimensions: 1500*205*215mm
Packing Size: 1575*256*260mm
Container Loading: 245pcs/20ft, 525pcs/40ft
Container Loading: 245pcs/20ft, 525pcs/40ft
.jpg)
Related Models:
| Type | Model | Length(mm) | Blower Dia(mm) | Height Validity(m) | Air Speed(m/s) |
| Heated Air Curtain | FM-1.25-09BD | 900 | 125 | 2.3 | 8 |
| Heated Air Curtain | FM-1.25-12BD | 1200 | 125 | 2.3 | 8 |
| Heated Air Curtain | FM-1.25-15BD | 1500 | 125 | 2.3 | 8 |
| Heated Air Curtain | FM-1.5-09B-3D | 900 | 150 | 2.5 | 10 |
| Heated Air Curtain | FM-1.5-12B-3D | 1200 | 150 | 2.5 | 10 |
| Heated Air Curtain | FM-1.5-15B-3D | 1500 | 150 | 2.5 | 10 |
